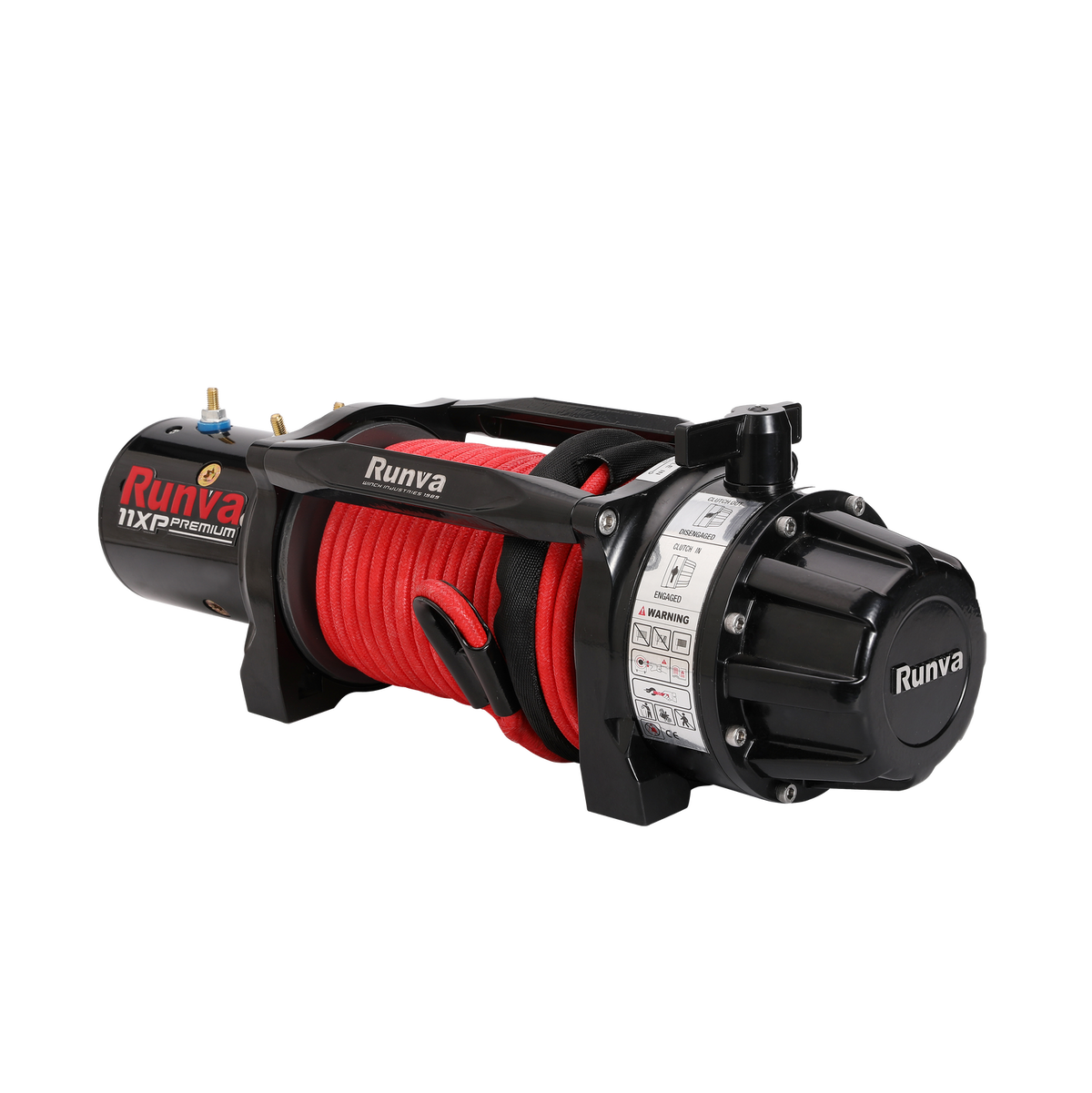

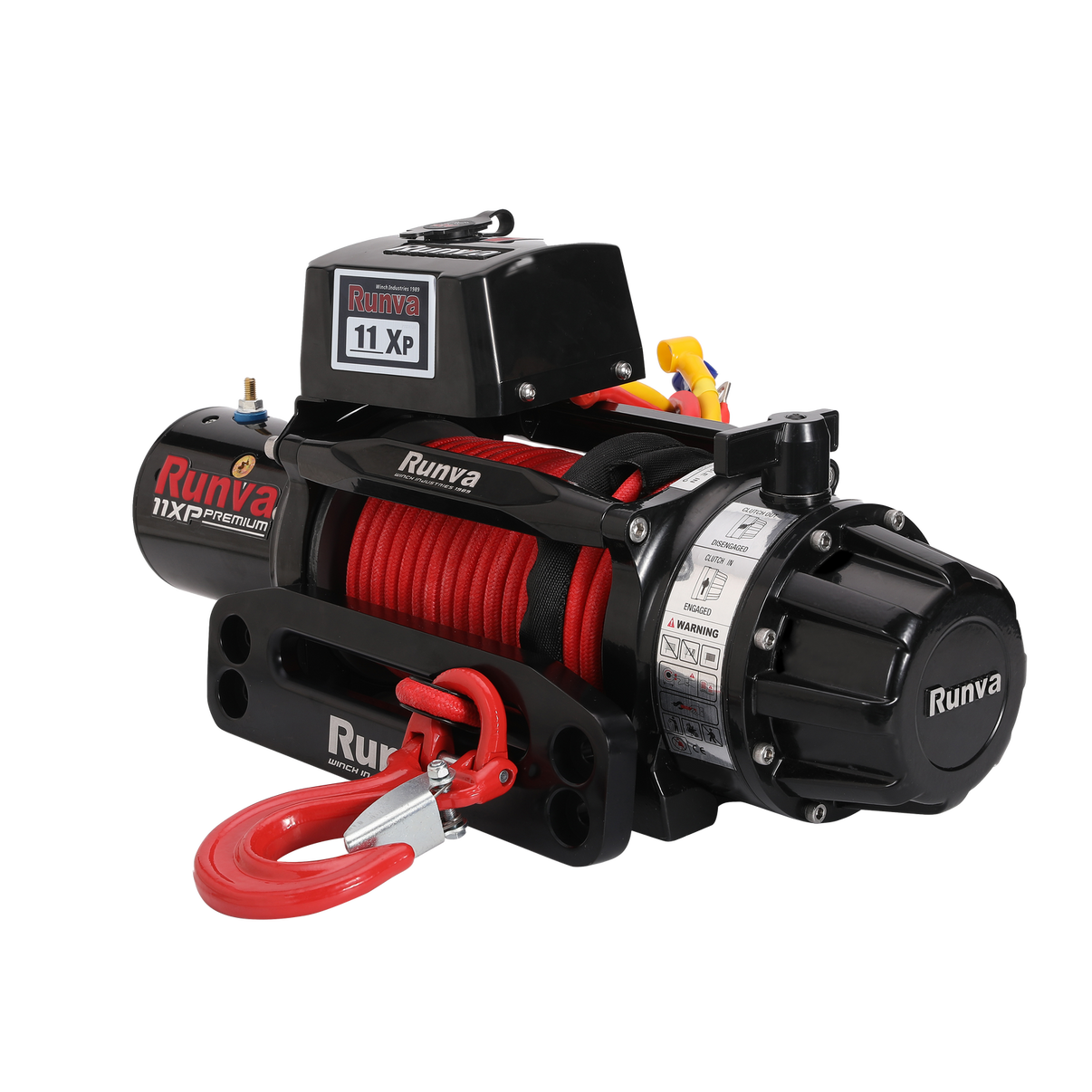

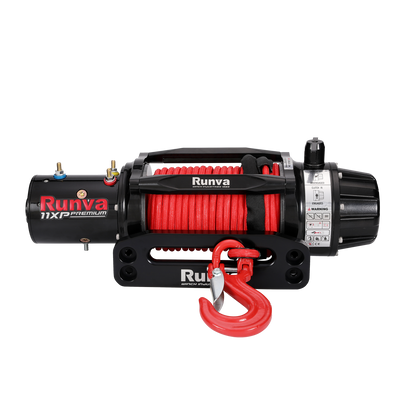

Runva 11XP Premium RED Edition 12V Winch with Synthetic Rope
Get yourself out of trouble anywhere with the Runva 11XP Premium RED Edition — a heavy-duty 12V 4x4 recovery winch delivering a massive 11,000lb (4,990kg) of pulling power from a powerful, reliable 6.7HP motor. Fitted with 25m of 10mm double-braid synthetic rope, a three-stage planetary gearbox and full IP67 all-weather sealing, the 11XP shrugs off the toughest recoveries and suits most aftermarket bull bars — with in-cab, wireless and handheld control so you can work it however you like.
Key Features
▪ 11,000lb (4,990kg) rated line pull — serious recovery muscle from a powerful 6.7HP 12V motor
▪ 25m x 10mm synthetic rope — lightweight double-braid rope with a 22,500lb breaking strength, safer and easier to handle than steel cable
▪ Three-stage planetary gearbox — a 228:1 ratio for strong, controlled winching under heavy load
▪ Three ways to control — in-cab rocker switch, wireless remote and handheld remote all included
▪ 3-stage clutch, easy freespool — quick, low-effort freespooling to pull the rope out by hand
▪ IP67 waterproof rating — fully sealed to keep out water, mud and dust on every crossing
▪ Non-wearing ratchet brake — housed inside the gearbox for reliable, consistent load holding
▪ Runva Rope-Lock & RED Edition styling — secures the rope tail to the drum, with standout looks that suit most bull bars
Line Pull by Rope Layer
| Layer 1 | 11,000 lb (4,990 kg) |
| Layer 2 | 8,766 lb (3,976 kg) |
| Layer 3 | 7,286 lb (3,305 kg) |
| Layer 4 | 6,233 lb (2,827 kg) |
Specifications
| Rated line pull | 11,000 lb (4,990 kg) |
| Motor | 6.7 HP, 12V DC |
| Gearbox | 3-stage planetary, 228:1 ratio |
| Brake | Non-wearing ratchet brake (in gearbox) |
| Clutch | 3-stage, easy freespool |
| Rope | 10mm x 25m double-braid synthetic (22,500 lb breaking strength) |
| Drum | 63mm x 217mm |
| Fairlead | Aluminium hawse |
| Control | In-cab rocker + wireless + handheld remote |
| Waterproofing | IP67 |
| Dimensions | 574 x 160 x 196 mm |
| Mounting pattern | 254 x 114.3 mm (10" x 4.5") |
| Weight | 42 kg |
| Warranty | 5-Year electrical / Lifetime mechanical |
| Part number | 11XPPREMIUM12VDREDWH |
What's in the Box
▪ Runva 11XP Premium RED Edition 12V winch
▪ 25m x 10mm double-braid synthetic rope (pre-fitted)
▪ Aluminium hawse fairlead

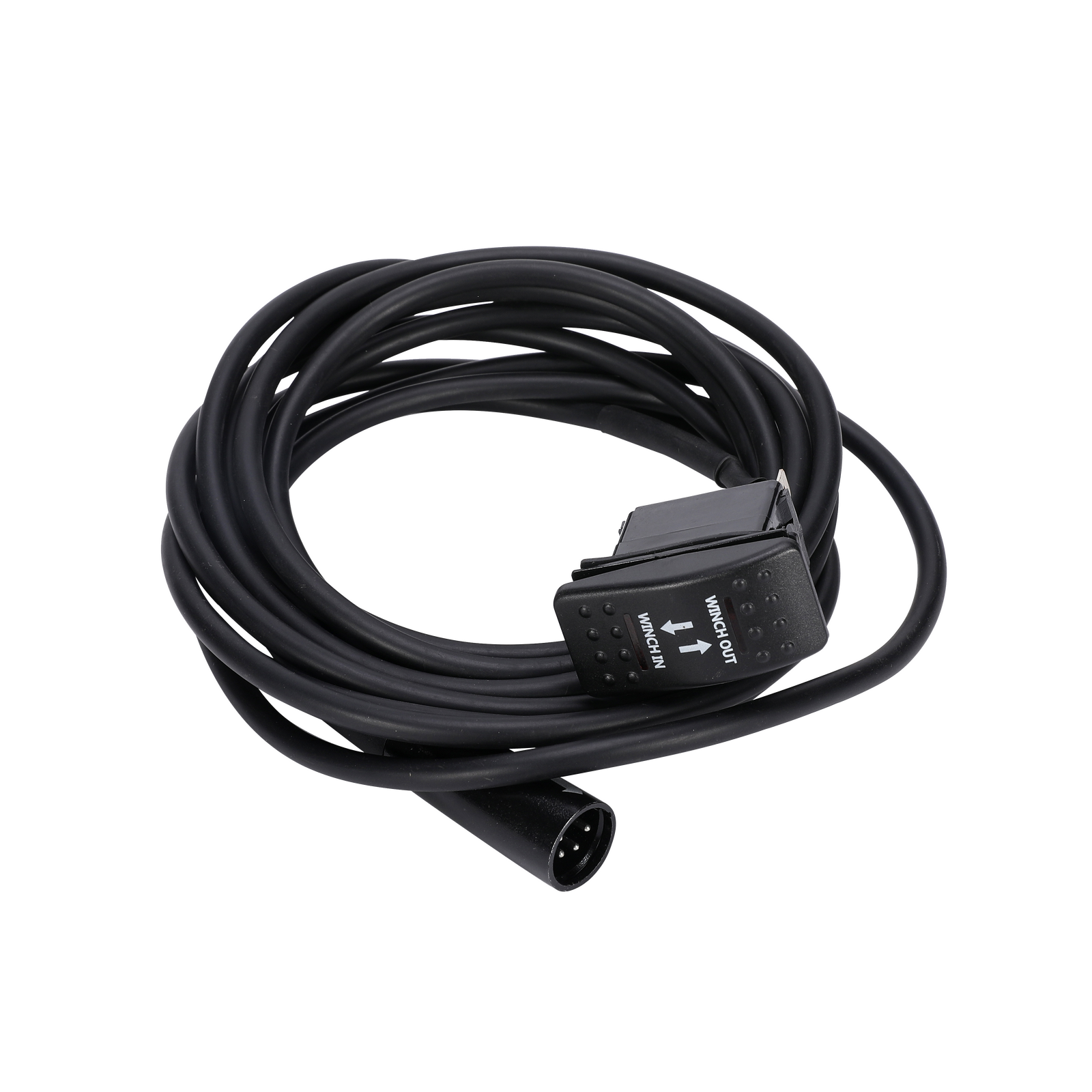

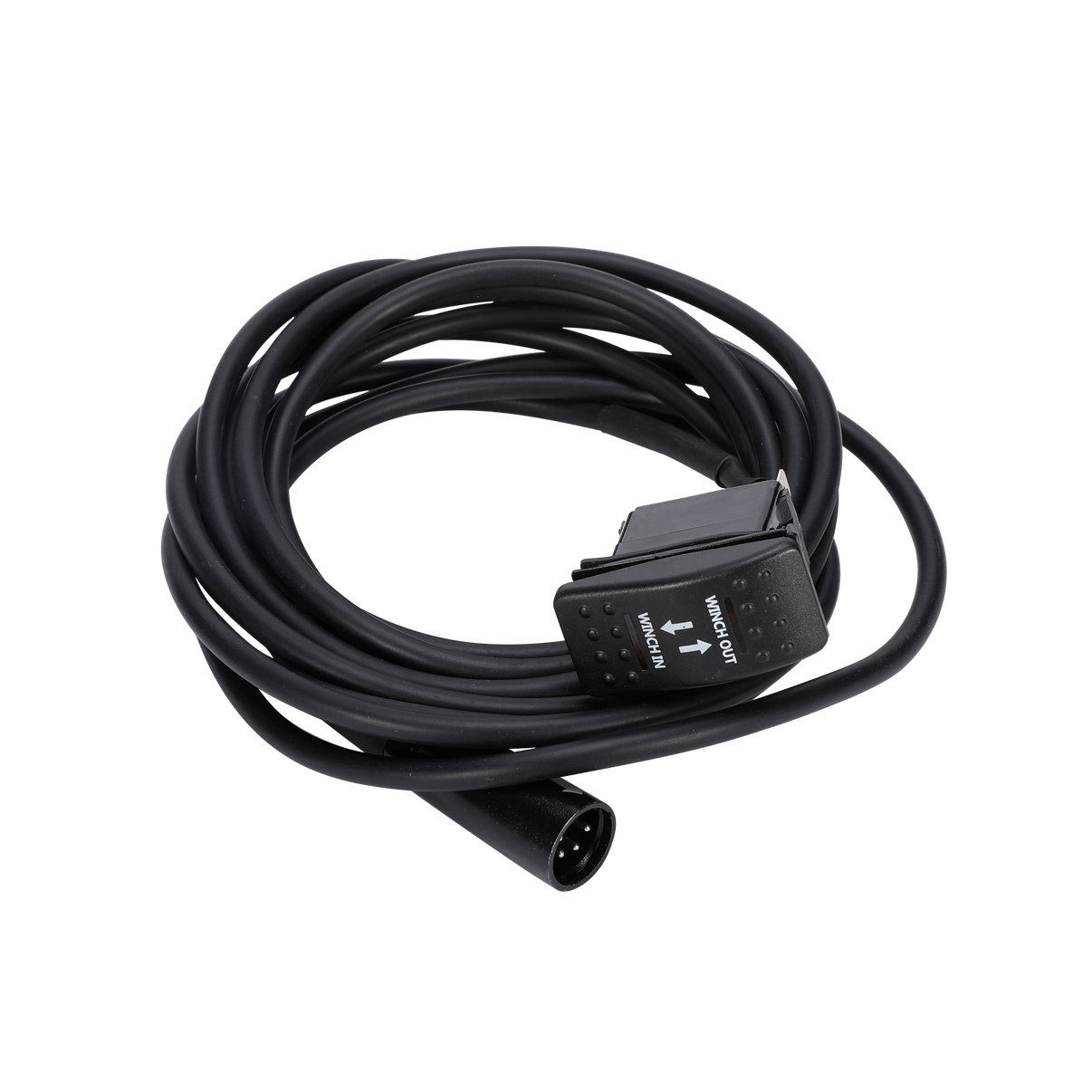

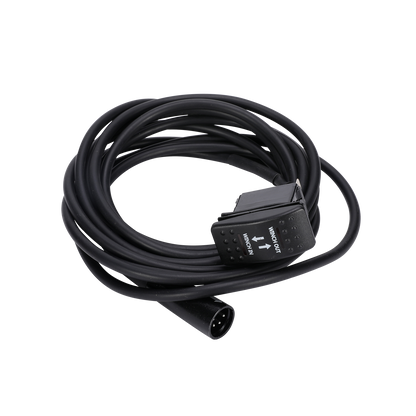

▪ In-cab rocker switch
▪ Wireless remote control
▪ Handheld remote
▪ 2 x 1.8m heavy-duty battery leads
▪ Runva Rope-Lock & mounting hardware
Why Choose the Runva 11XP
▪ Recover with confidence — 11,000lb of pull tackles bogged 4WDs, trailers and heavy recoveries
▪ Ready to fit — standard 254 x 114.3mm bolt pattern suits most bull bars and winch cradles
▪ Backed for the long haul — 5-year electrical and lifetime mechanical warranty
🏆 5-Year Electrical & Lifetime Mechanical Warranty
