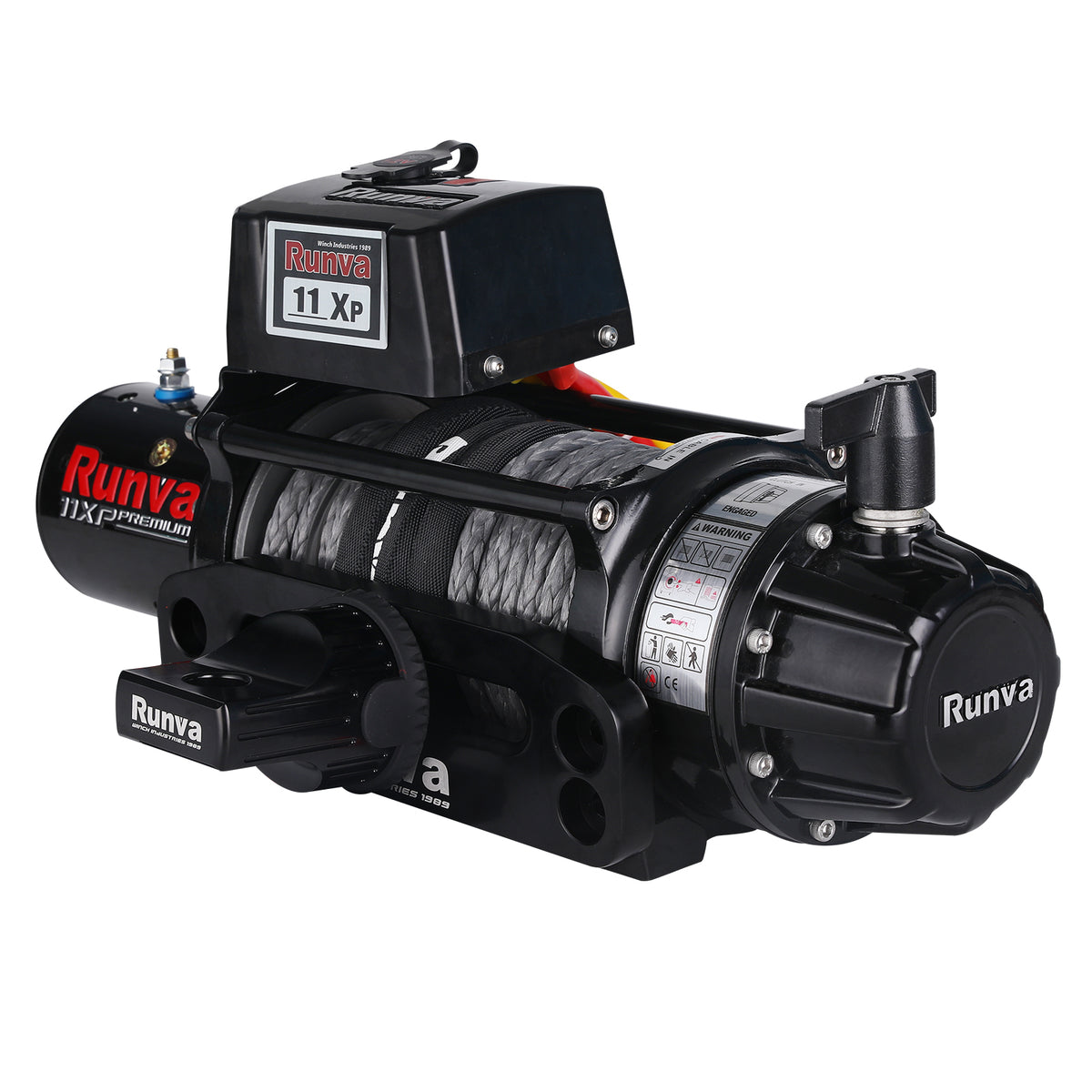

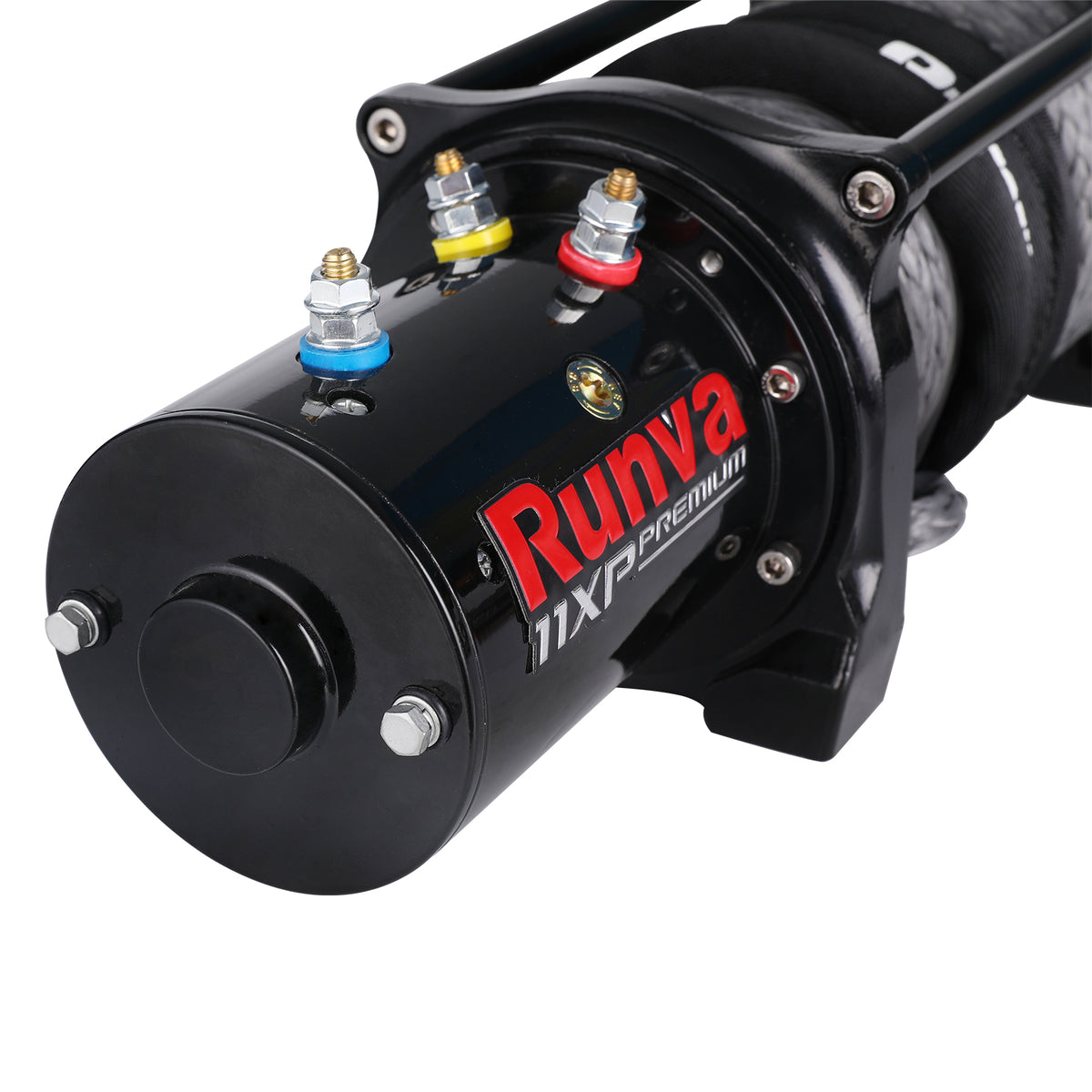

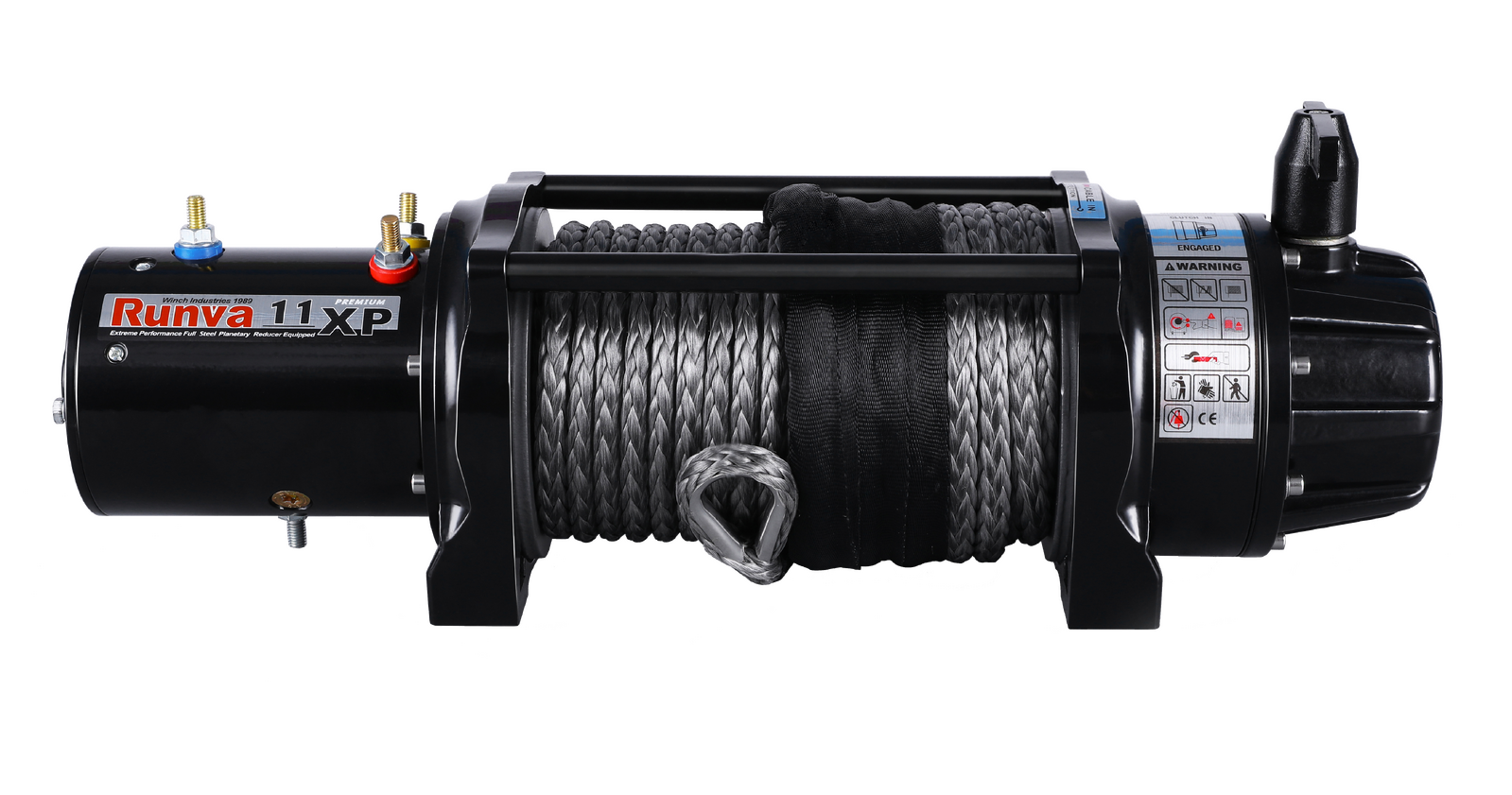

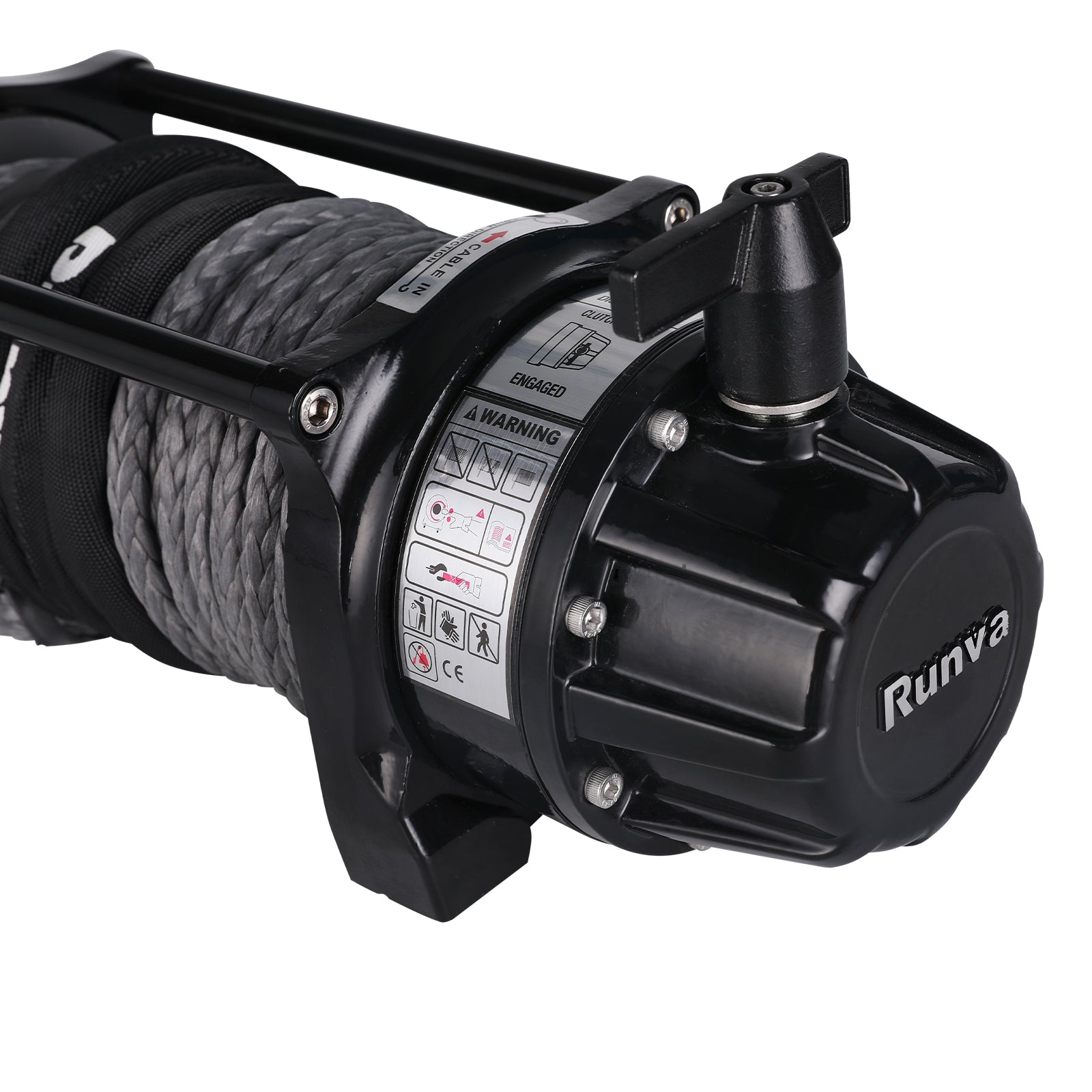

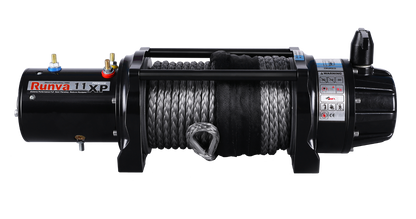

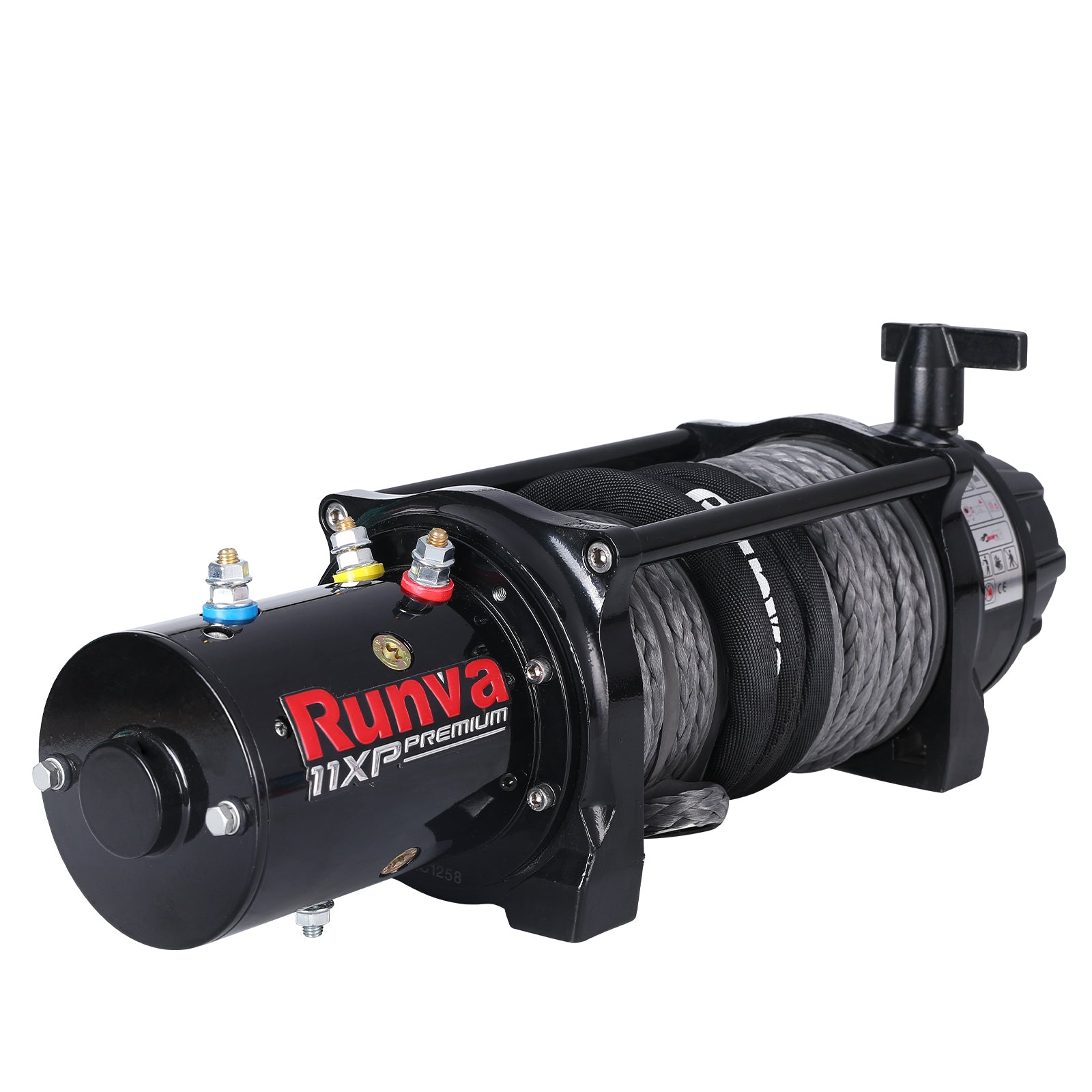

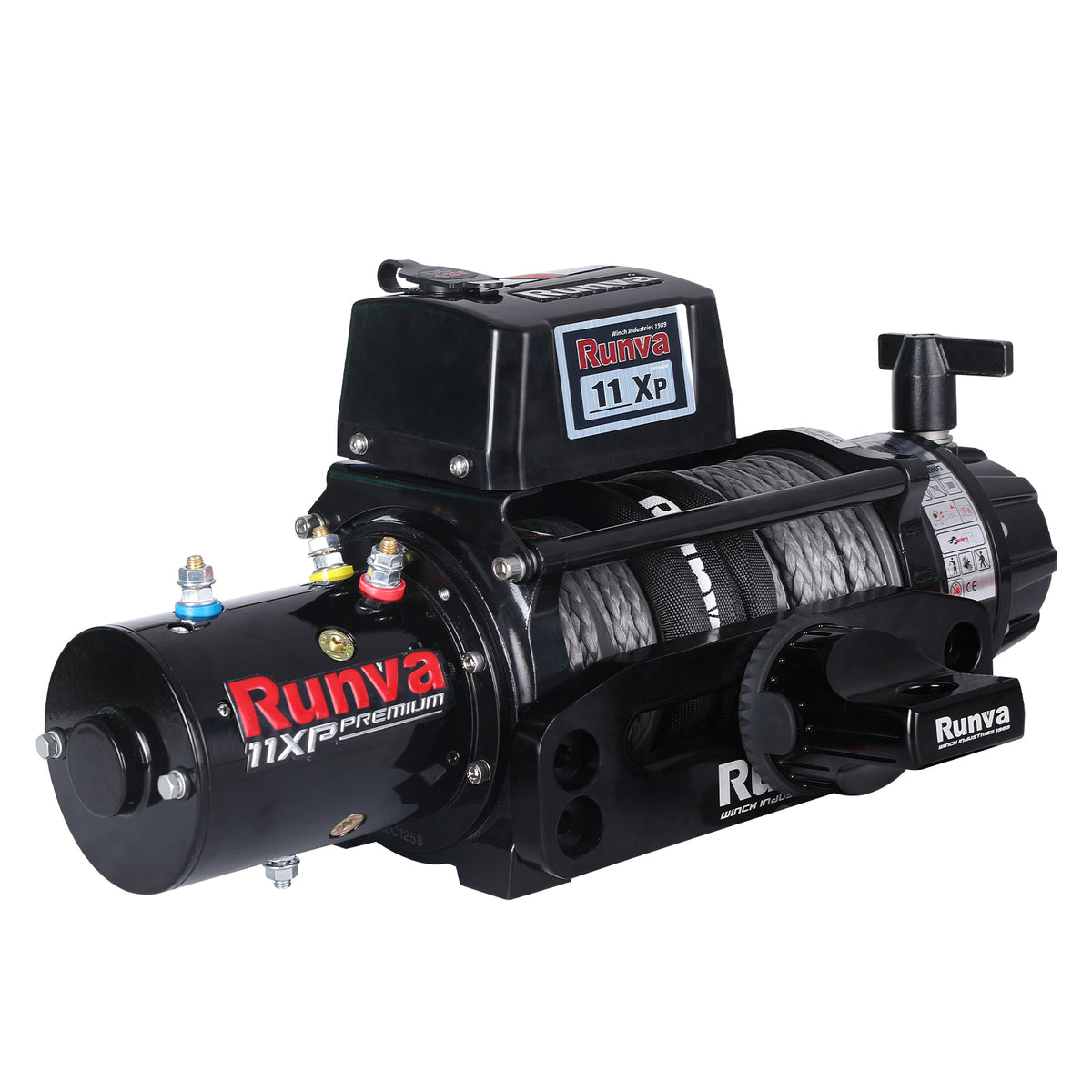

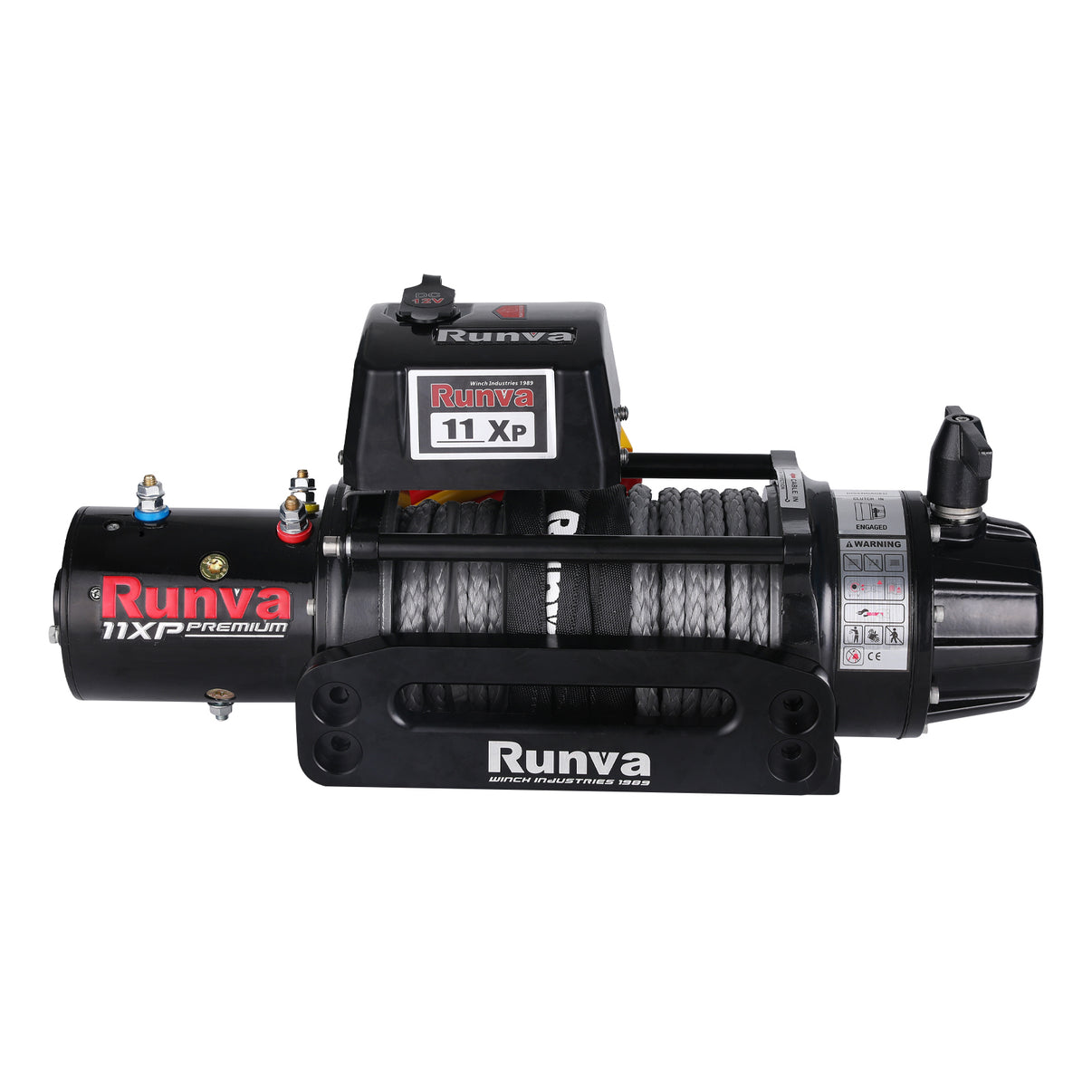

Runva 11XP Premium 12V Winch with Synthetic Rope
The perfect 4x4 winch for any touring rig. The Runva 11XP Premium delivers a massive 11,000lb (4,990kg) of pulling power from a powerful, reliable 6.7HP motor — fitted with 25m of 10mm double-braid synthetic rope, a full-steel three-stage planetary gearbox and IP67 all-weather sealing. Proven on 4WD expedition builds and tough enough for the hardest recoveries, it bolts up to 99% of 4x4 winch bars, from a compact Hilux to a big LandCruiser.
Key Features
▪ 11,000lb (4,990kg) rated line pull — serious recovery muscle from a powerful 6.7HP (5.0kW) 12V motor
▪ 25m x 10mm synthetic rope — double-braid rope with a 22,500lb breaking strength, lighter and safer to handle than steel cable
▪ Full-steel 3-stage planetary gearbox — a 228:1 ratio for strong, controlled winching under heavy load
▪ Stainless steel rotary clutch — smooth, easy freespool engagement; upgrade to the optional Runva Air Clutch for in-cab control
▪ Handheld & wireless remotes — both included so you can control recoveries from a safe distance
▪ IP67 waterproof rating — fully sealed against water, mud and dust for extreme conditions
▪ Non-wearing ratchet brake — housed inside the gearbox with no wear pads for reliable load holding
▪ Fits 99% of winch bars — standard 254 x 114.3mm bolt pattern suits most 4x4 bull bars and cradles
Line Pull by Rope Layer
| Layer 1 | 11,000 lb (4,990 kg) |
| Layer 2 | 8,766 lb (3,976 kg) |
| Layer 3 | 7,286 lb (3,305 kg) |
| Layer 4 | 6,233 lb (2,827 kg) |
Performance (12V DC)
| No load | 9.8 m/min · 75 A |
| 4,000 lb pull | 4.0 m/min · 220 A |
| 8,000 lb pull | 3.0 m/min · 320 A |
| 11,000 lb pull | 1.8 m/min · 420 A |
Specifications
| Rated line pull | 11,000 lb (4,990 kg) |
| Motor | 6.7 HP (5.0 kW), 12V DC |
| Gearbox | Full-steel 3-stage planetary, 228:1 ratio |
| Brake | Non-wearing ratchet brake (in gearbox) |
| Clutch | Stainless steel rotary (Air Clutch optional) |
| Rope | 10mm x 25m double-braid synthetic (22,500 lb breaking strength) |
| Drum | 63mm x 217mm |
| Fairlead | Aluminium hawse |
| Control | Handheld + wireless remote |
| Waterproofing | IP67 |
| Dimensions | 574 x 160 x 200 mm |
| Mounting pattern | 254 x 114.3 mm (10" x 4.5") |
| Weight | 37.5 kg |
| Finish | Black powder coat |
| Warranty | 5-Year electrical / Lifetime mechanical |
| Part number | 11XPPREMIUM12VD |
What's in the Box
▪ Runva 11XP Premium 12V winch
▪ 25m x 10mm double-braid synthetic rope (pre-fitted)
▪ Aluminium hawse fairlead
▪ Handheld remote control
▪ Wireless remote control
▪ 2 x 1.8m heavy-duty battery leads
▪ Mounting hardware
Why Choose the Runva 11XP
▪ Recover with confidence — 11,000lb of pull tackles bogged 4WDs, trailers and heavy recoveries
▪ Touring proven — trusted on expedition builds and built to handle repeated, extreme recoveries
▪ Backed for the long haul — 5-year electrical and lifetime mechanical warranty
🏆 5-Year Electrical & Lifetime Mechanical Warranty
