A ute toolbox installation should do more than fill an empty section of tray. It needs to keep expensive gear dry, secure and within easy reach after a long day on site, then stay put when the road turns rough. Get the fitment wrong and even a premium toolbox can rattle, leak, foul a canopy or compromise the way you use the vehicle.
For tradies, contractors and 4x4 owners, the best result comes from planning the whole setup before a single hole is drilled. Toolbox size, mounting position, tray material, load weight and the accessories already on the ute all matter.
Start With How You Actually Use the Ute

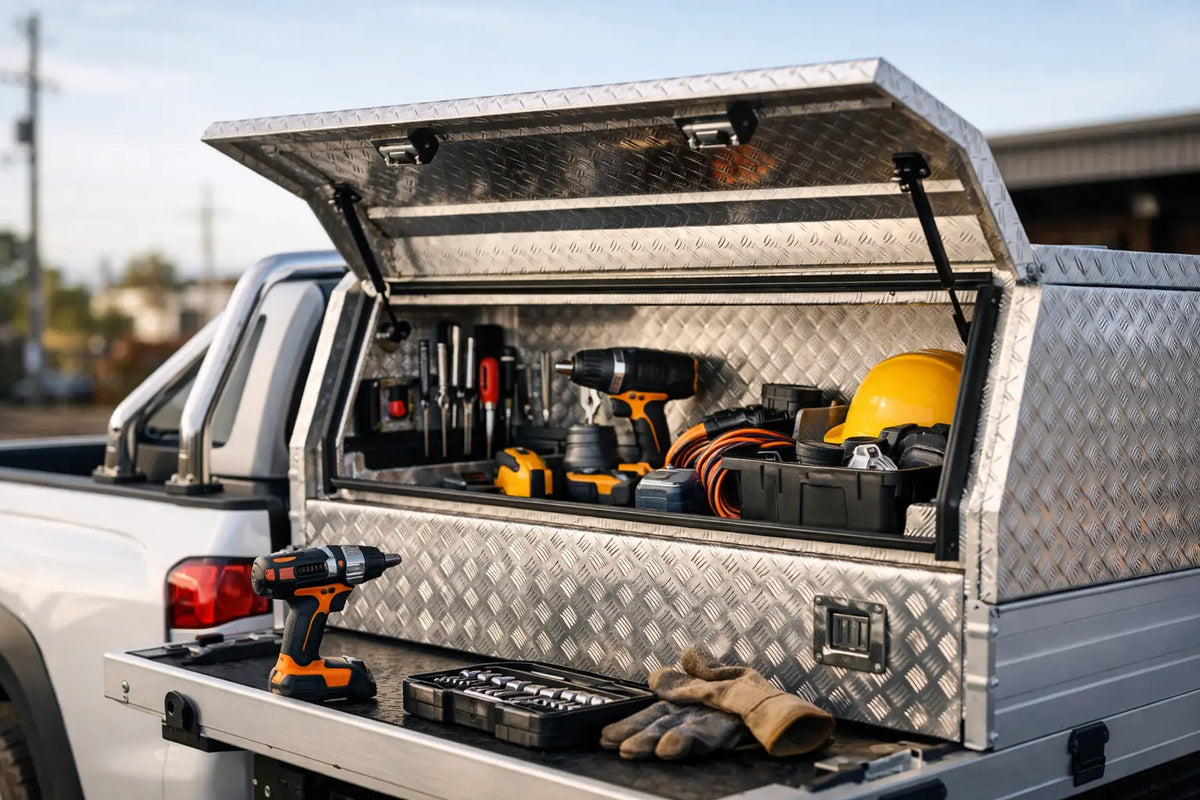

A full-width toolbox across the front of the tray suits owners who need quick access to hand tools, tie-downs, recovery gear or site equipment. It keeps weight forward and leaves the rest of the tray available for longer loads. But it can reduce room for ladders, bikes, a slide-out fridge or bulky materials.
Side-mount and undertray toolboxes free up valuable tray floor space. They are a practical choice for service bodies and work utes carrying compressors, generators or palletised loads. The trade-off is capacity and, in some positions, reduced ground clearance. An undertray box also needs enough clearance from suspension movement, exhaust heat and off-road obstacles.
Before choosing a box, measure the usable space rather than relying on overall tray dimensions. Allow for wheel arches, drop sides, tailgate opening, canopy rails and any existing drawer system. If the ute runs a tonneau cover or roller cover, check the toolbox lid can open fully without hitting it.
Consider Weight Before Capacity
A larger toolbox is tempting, but storage volume is only useful if the ute can safely carry the gear inside it. Add up the box, mounting hardware, tools, accessories and regular load, then consider passengers, towing ball weight and other permanent upgrades such as a canopy, drawer system or roof rack.
Payload is not a rough guide. It is a limit that affects handling, braking and tyre wear. A setup that looks tidy in the driveway can become a problem when it is fully loaded for a week away or a demanding job. Keep heavier gear low and as close to the front axle as practical, while still maintaining access and tray function.
Ute Toolbox Installation Starts With Proper Fitment
Every ute is different. A toolbox that suits a Ford Ranger may require a different mounting approach on a Toyota Hilux, Isuzu D-MAX, Mitsubishi Triton or BYD Shark 6. Tray construction, tub liners, factory mounting points and electrical layouts vary between models and model years.
On a steel tray, the mounting surface needs to be flat, sound and strong enough to spread the load. Aluminium trays need extra care. Fasteners and brackets should be selected to avoid unnecessary corrosion risk between dissimilar metals, with suitable isolation material where required. Thin sheet metal alone is rarely the right place to anchor a loaded toolbox.
For tub-backed utes, avoid assuming a plastic tub liner provides a secure base. Liners can flex, trap moisture and conceal the actual mounting structure. The box must be fixed to a suitable structural point, not simply clamped through plastic. If drilling is required, confirm what sits beneath the chosen location before proceeding. Fuel lines, wiring looms, sensors and chassis components are not risks worth taking.
A professional fitment also accounts for water management. Drain holes, sealing washers and correctly treated drilled holes help prevent moisture getting under the tray surface. That matters on work utes that see mud, coastal air and regular wash-downs.
Choose Hardware for Vibration, Not Just Strength
A toolbox may feel secure when stationary, yet work loose after months of corrugations, potholes and uneven tracks. The mounting hardware needs to handle repeated vibration as well as the static weight of the box.
Quality bolts, large load-spreading washers or backing plates, correctly rated brackets and locking hardware make a real difference. The hardware should be tightened to the correct specification for the application, then inspected after the first period of use. A quick recheck is especially worthwhile after towing, heavy loads or a trip on rough tracks.
Avoid relying on light-duty self-tapping screws for a toolbox carrying serious tools. They may suit minor trim components, but a loaded toolbox needs a more substantial fixing method. If access below the tray is limited, a workshop can recommend the right bracket or mounting solution rather than forcing a shortcut.
Position the Box to Keep the Ute Useful
The most secure install is not always the most practical one. Think about how you load the ute on a normal week. Can you still slide in lengths of timber? Does the tailgate open? Is there enough room to reach your tie-down points? Can you remove the spare wheel or access a tray-mounted water tank?
Front-mounted boxes should leave enough space for headboard-mounted accessories, ladder racks and cab clearance. Side toolboxes must not interfere with tray sides, wheel travel or legal vehicle width. Undertray boxes should not block steps, body mounts or factory service access.
If you are pairing the toolbox with a canopy, roller cover or roof rack, plan the install as one system. A canopy may need clearance around toolbox lids, while a roller cover can require dedicated side tracks and unobstructed drainage channels. A well-built ute setup looks integrated because each part was selected to work with the next.
Weatherproofing Is About the Whole Installation
A weather-resistant toolbox starts with a quality lid seal and folded construction, but that is only part of the job. Water can enter through poorly sealed mounting holes, open tray channels or gaps created when accessories are forced together.
Check that the lid seal is seated evenly and that the lid closes without twisting. A toolbox mounted on an uneven surface can put the lid out of alignment, creating a small gap that becomes obvious during heavy rain or high-pressure washing. Keep drain points clear and do not pack loose gear hard against the lid.
Dust is another consideration for regional travel and unsealed roads. No storage box is completely immune to fine bulldust in every condition, but a correctly fitted box with intact seals will perform far better than one with distorted lids, loose fasteners or poorly finished openings.
Security Needs More Than a Locking Lid
A lockable toolbox is a strong first layer of security, particularly when it uses quality latches and protected lock barrels. But the box itself must also be difficult to remove. A heavy-duty box fixed with weak or exposed hardware is only as secure as its mounting points.
Keep high-value tools out of sight where possible and avoid leaving keys in obvious locations. If the ute is regularly parked on job sites or at trailheads, consider how the box works with a canopy, tailgate lock and vehicle alarm. Layered security is more effective than expecting one lock to do all the work.
Organisation also improves security in a practical way. Drawer inserts, dividers and tool rolls prevent gear from shifting, which reduces damage and makes missing items easier to notice. A toolbox that opens to a pile of loose equipment wastes time and puts extra stress on hinges and latches.
When Professional Installation Makes Sense
A straightforward toolbox can appear to be a weekend job, and for some owners it is. If you have the right tools, understand the tray structure and can mount the box without compromising other equipment, a careful DIY install may suit.
Professional fitment is the better call when the job involves a new canopy, roller cover, electrical accessories, custom brackets, aluminium trays, undertray boxes or a fully loaded work setup. It is also worthwhile when the vehicle is new and you want the installation finished cleanly, with sensible sealing and no guesswork around hidden components.
At Tiger-X Auto, ute storage upgrades can be matched with workshop-backed fitment, helping ensure the toolbox works with the rest of the build rather than becoming an afterthought. That is particularly useful when combining storage with racks, drawer systems, lighting or touring gear.
Before handing over the keys or loading the box, open and close every lid, check the tailgate and cover operation, inspect clearances, and take the ute for a short drive. A properly installed toolbox should feel like part of the vehicle - quiet, secure and ready for the next job or weekend away.
