A ute tray can look loaded without being useful. The best ute toolbox layouts put the gear you reach for every day within easy access, keep valuable equipment locked down, and leave enough clear space to carry the awkward stuff that pays the bills. Whether your ute spends Monday on site and Friday heading bush, the layout needs to work hard before it looks good.
The right answer depends on what you carry, how often you need it and where you drive. A sparky with cases and test gear needs a different setup to a builder hauling long materials, while a touring 4x4 needs room for recovery gear, a fridge and camp equipment. Start with the job your ute does most often, then build flexibility around the rest.
Start With Access, Not Toolbox Size
The biggest toolbox is not automatically the best choice. A full-width box across the front of a tray offers serious capacity, but it can restrict access to the front of the load area and take up space needed for longer materials. Side boxes make use of otherwise wasted space, though they can reduce usable tray width. Under-tray boxes keep the deck clear, but are better suited to compact, sealed gear than bulky power tools.
Before choosing a layout, stand beside the ute and think through a normal workday. Which tools are used first? Do you need to access them from the footpath side without climbing into the tray? Will the tailgate be open while you work? These details determine whether a setup saves time or becomes a daily frustration.
Also consider where the ute is parked. A toolbox door that swings wide may be fine on a job site but difficult in a tight warehouse, underground car park or narrow driveway. Gullwing doors provide excellent top-down access, while conventional side-opening doors can work well where clearance is available. Good hardware, weather seals and secure locking matter just as much as the box itself, especially when the ute is left loaded overnight.
Best Ute Toolbox Layouts by Use Case
The tradie workhorse: front box and side boxes
For many trades, a front-mounted full-width toolbox combined with slim side boxes is one of the most practical arrangements. The front box handles large tools, PPE, fixings and job-specific equipment. Side boxes can carry hand tools, straps, leads, consumables and wet-weather gear that needs to be reached quickly.
This layout keeps the tray floor open for sheets, ladders, timber, compressors or machinery. It is particularly effective on an alloy or steel tray with drop sides, where access from both sides is straightforward. The trade-off is tray width. Side boxes need to be sized carefully so they do not interfere with wide loads or make it harder to tie down materials.
If you regularly carry long items, choose a front box with a profile and height that works with your rack system. A ladder rack or roof rack can take the load above the toolbox, provided the entire setup is correctly matched to the vehicle and its load rating.
The organised operator: drawer system under a canopy

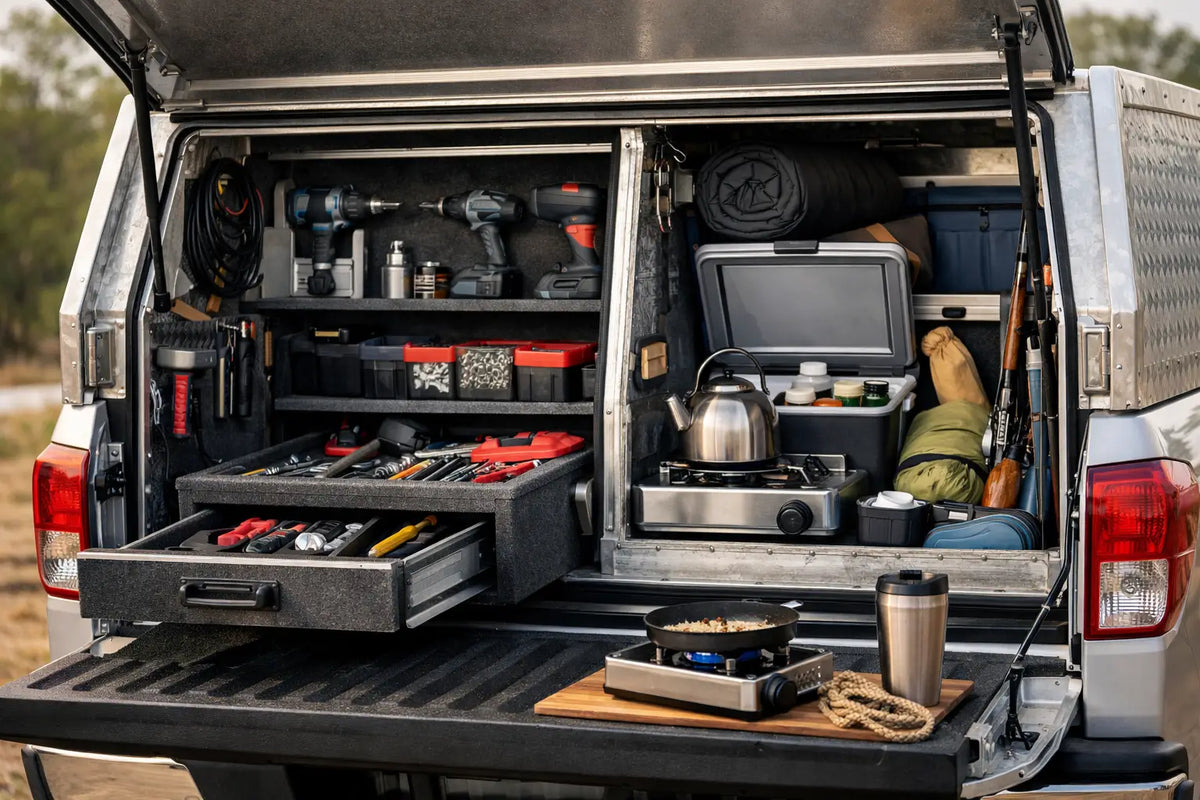

A canopy and drawer system is a strong option for owners who carry valuable equipment and want a clean, secure workspace. Heavy-duty drawers create designated storage for tools, parts and recovery equipment, while the canopy keeps dust, rain and unwanted attention out of sight. Add internal shelving, a cargo barrier or slide-out work surface and the ute can become a mobile workshop.
This is one of the best ute toolbox layouts for electricians, plumbers, mobile technicians and contractors carrying a consistent range of gear. Everything has a place, which means less rummaging through tubs at the end of a long day.
The compromise is load height and flexibility. Drawers raise the floor, so lifting heavy equipment in and out takes more effort. They also consume a fair portion of the tray, which can be limiting when you need to load a pallet, a motorbike or bulky building supplies. Choose drawer capacity based on real tool weight, not just internal dimensions, and make sure the canopy, drawers and accessories do not push the ute beyond its payload limits.
The work-and-tour setup: front box, rear drawers and rack system
For a ute that needs to earn its keep and disappear on a weekend trip, a mixed layout often makes the most sense. A low-profile front toolbox stores everyday work gear and keeps the centre of the tray free. A compact drawer system or removable storage boxes at the rear can hold recovery gear, cooking equipment and camp essentials. Above, a rack system can carry ladders during the week or a rooftop tent, awning, swags or long gear on weekends.
The key is keeping the touring equipment modular. If your recovery kit, fridge slide or storage modules can be removed, the ute remains useful when a larger work load turns up. Permanent touring fit-outs look the part, but they can become dead weight if the vehicle is still expected to carry tools and materials every day.
Keep heavier gear low and as close to the cab as practical. A loaded fridge, dual-battery system, drawers and spare parts add up quickly. Spread weight sensibly and check axle loads, not only the advertised payload figure.
The clean tray layout: under-tray boxes and removable storage
Some operators need a completely clear tray more than they need a permanent top-side toolbox. Landscape crews, builders, delivery operators and anyone shifting bulky loads can benefit from under-tray toolboxes paired with removable crates, tubs or job boxes.
Under-tray boxes are ideal for ratchet straps, chains, hand tools, gloves, hitch gear and compact recovery equipment. They preserve the full tray deck and keep dirty or wet items out of the cab. Their lower position is also helpful for vehicle stability, although ground clearance must be considered on 4x4s that see rutted tracks or rough access roads.
This layout is less suited to large cordless tool kits or equipment you need to access repeatedly throughout the day. The boxes sit lower, collect road grime and can be harder to reach when the ute is parked close to a kerb. Choose sealed, durable units and ensure mounting points, door operation and clearances are professionally checked.
Build Around Weight, Security and Fitment
A toolbox layout is part of the vehicle, not just something bolted onto it. Toolboxes, drawers, canopies, racks, water tanks, fridges and auxiliary batteries can quickly consume payload. Add passengers, a tow ball download and a full tank, and a dual-cab ute can be much closer to its limit than expected.
Weight distribution matters too. Heavy gear placed behind the rear axle can affect handling, braking and suspension performance. Wherever possible, load dense items low and forward. This is particularly relevant for touring builds, where drawers filled with recovery gear, food and spares are often paired with a canopy, roof load and towing setup.
Security should be treated as a system. A decent lock is only one part of it. Look for strong lid construction, protected hinges, quality seals and mounting that cannot be easily tampered with. If tools are your livelihood, it is worth choosing storage that closes properly after dust, rain and thousands of kilometres on corrugated roads.
Vehicle-specific fitment is equally important. Tray dimensions, wheel arch intrusion, factory sports bars, tonneau covers, roller covers and canopies all affect what will fit. A layout that works on a Ford Ranger may not transfer neatly to a Toyota Hilux, Isuzu D-MAX, Mitsubishi Triton or BYD Shark 6. Professional installation helps prevent rattles, water leaks, clearance issues and mounting problems that show up once the ute is loaded and working.
A Layout That Keeps Earning Its Place
The best layout is the one that makes loading faster, protects expensive gear and still lets the ute do the jobs you bought it for. Avoid filling every available space just because an accessory can be fitted. Leave room for changing work demands, unexpected loads and the occasional escape from the job site.
For owners wanting a tailored setup, Tiger-X Auto can match premium ute accessories and licensed fitment to the way the vehicle is actually used. Get the storage plan right first, and every toolbox, canopy, drawer and rack has a clear job to do.
