A towbar may be built to pull a serious load, but without correct towbar wiring, your trailer is only halfway connected. Lights, indicators, electric brakes, reverse lamps and auxiliary power all rely on the wiring system doing its job every time you hook up. For a work ute towing a tool trailer during the week and a camper or boat on the weekend, that reliability is not optional.
Poor wiring creates problems that usually show up at the worst time: no brake lights in traffic, a flashing dash warning, a flat camper battery, or electric brakes that do not respond as they should. The right setup is vehicle-specific, trailer-specific and fitted neatly enough to handle real Australian road conditions.
What towbar wiring actually does

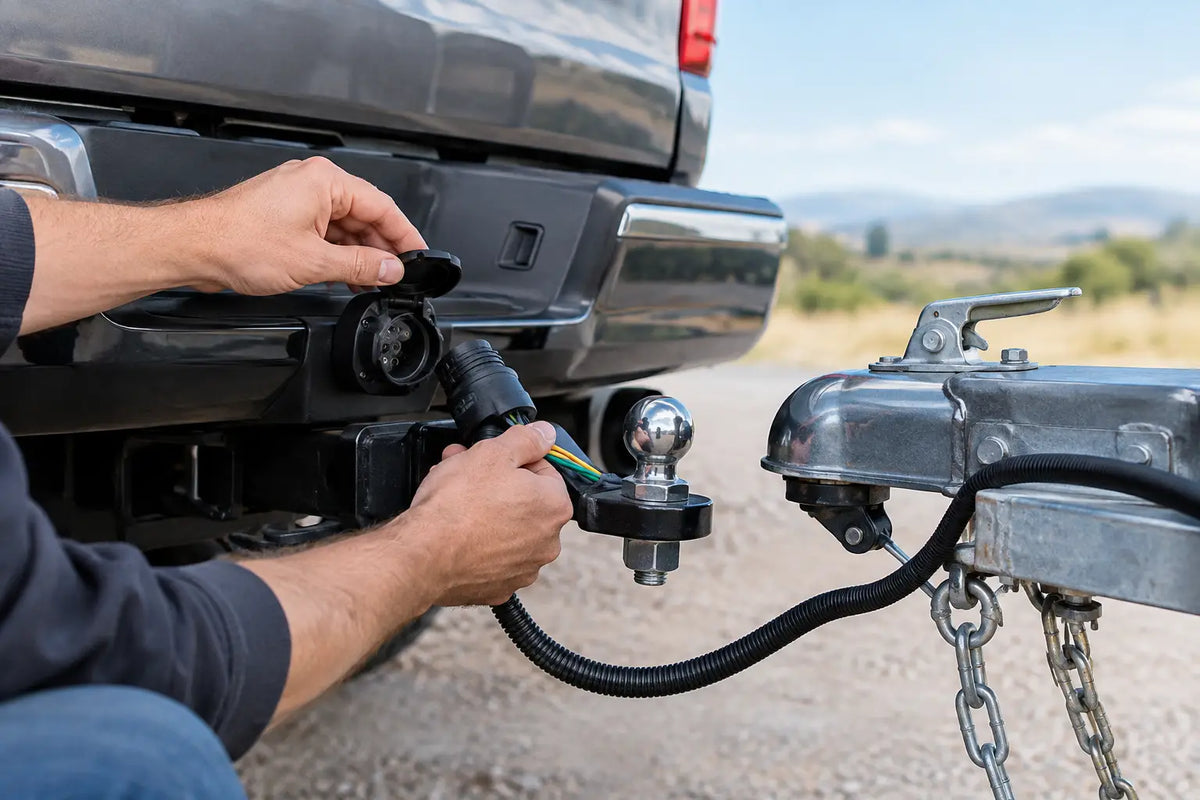

Towbar wiring transfers electrical signals from your ute to the trailer through a plug and socket connection. At the minimum, it runs the trailer’s tail lights, brake lights, indicators and number plate light. Depending on the plug type and the way the trailer is equipped, it can also supply reverse lights, electric brake control and auxiliary charging power.
That sounds straightforward, but modern utes make the job more involved. Vehicles such as the Ford Ranger, Toyota Hilux, Isuzu D-MAX, Mitsubishi Triton and Nissan Navara use sophisticated electrical systems that monitor circuits and communicate across vehicle modules. A basic splice-and-tape job can interfere with those systems, trigger fault messages or leave trailer lights working inconsistently.
A proper fitment starts with a compatible harness or vehicle-specific wiring kit where available. These systems are designed to connect into the ute’s electrical architecture without cutting into factory wiring unnecessarily. The result is a cleaner install, better protection from faults and a finish that looks like it belongs on the vehicle.
Choosing the right towbar wiring plug
The plug on the back of the ute needs to match the plug on your trailer, but it also needs enough circuits for what you plan to tow. A box trailer used for tip runs has different requirements to a braked tradie trailer, caravan or off-road camper.
Seven-pin flat plugs
The seven-pin flat plug is common across Australia and suits many light trailers. It generally covers the core lighting functions and is a practical choice for unbraked box trailers, garden trailers and basic boat trailers.
For many ute owners, this is the right starting point. It is compact, widely available and easy to connect. The trade-off is that it has limited capacity for additional functions. If you need dedicated reverse lights, electric brake control or charging power for a caravan battery, a basic seven-pin setup may not cover everything required.
Seven-pin round and twelve-pin plugs
Seven-pin round plugs are still common on older trailers and certain heavy-duty applications. Small and large round versions are not interchangeable, so checking the trailer connection before booking an install saves hassle later.
A twelve-pin plug is often used when a trailer needs more than standard lighting. It can provide extra circuits for electric brakes, reverse lights and auxiliary power. This makes it a common option for caravans and campers, particularly where you want to run a fridge or maintain a battery while travelling.
More pins do not automatically mean more usable power. The cable size, fusing, vehicle charging system and trailer wiring all matter. A caravan battery cannot be reliably charged through a light-duty auxiliary circuit if the cable is too small or voltage drop is excessive.
Anderson plugs for auxiliary power
For campers, caravans and off-grid touring setups, an Anderson plug is often the stronger option for battery charging. It is separate from the trailer lighting plug and uses heavier cable to handle higher current safely.
On many modern utes, particularly those with smart alternators, an Anderson plug is best paired with a suitable DC-DC charger in the trailer or canopy system. This manages charging voltage properly and helps protect the vehicle’s electrical system. It is the kind of detail that separates a setup that looks tidy from one that performs properly on a long run up the coast or out to site.
Electric brake controllers are part of the system
If your trailer has electric brakes, towbar wiring alone is not enough. You also need a brake controller fitted to the ute. The controller sends a measured electrical signal to the trailer brakes when you apply the pedal, helping the trailer slow down in line with the vehicle.
Brake controllers can be mounted within reach of the driver or fitted as more integrated units, depending on the vehicle and product. The right choice comes down to how often you tow, trailer weight, available cabin space and whether you want visible manual control.
A properly configured controller needs to be calibrated for the loaded trailer. Too little gain and the trailer contributes very little braking force. Too much and the trailer wheels can lock under firm braking, especially on loose gravel or wet roads. Load changes matter too. A tool trailer loaded for a job is not going to behave like the same trailer running empty on Sunday.
Australian towing rules vary between states and territories, and braking requirements depend on trailer mass and design. Trailers above relevant weight thresholds require compliant braking systems, while heavier trailers require a breakaway function that can apply the trailer brakes if it separates from the ute. Check the requirements that apply to your trailer, and do not treat the wiring as an afterthought to the towbar itself.
Why vehicle-specific wiring is worth it
A universal wiring kit may appear cheaper at first, but it can create extra risk on a late-model ute. Modern LED lighting and body control modules can detect unexpected electrical loads. A poor-quality installation may cause fast-flashing indicators, warning lights, flickering trailer lamps or faults that are difficult to trace.
Vehicle-specific wiring kits are designed around the vehicle’s existing circuits. Where required, they use a dedicated module to protect the factory electronics and deliver the correct output to the trailer. This is particularly useful on newer vehicles with LED tail lights, trailer sway functions or integrated towing features.
Fitment quality matters just as much as the harness. Wiring should be routed away from exhaust heat, sharp edges, suspension movement and areas exposed to stone strike. Connections need weatherproofing, cables need secure mounting, and the trailer socket needs to be positioned where it is accessible without hanging low enough to cop damage off-road.
For utes fitted with a rear step towbar, aftermarket bumper, canopy or tray, the final socket location needs planning. You want a setup that is protected, easy to reach and does not interfere with recovery gear, rear sensors or the tailgate.
Common towbar wiring faults and what they mean
Trailer lighting faults are often blamed on the ute, but the trailer is just as likely to be the cause. Corrosion inside the trailer plug, damaged earth wires and water in tail lights are common issues, especially on boat trailers that see regular saltwater use.
If one trailer works perfectly and another does not, start by inspecting the trailer plug, wiring loom and earth connection. If several trailers show the same issue behind your ute, the vehicle socket or wiring installation needs attention.
A weak earth is one of the most common causes of strange lighting behaviour. You might see indicators flashing through the brake lights, dim lamps or lights operating only when another circuit is switched on. These faults can be frustrating, but they are usually traceable with proper testing rather than guesswork.
Do not ignore a blown fuse or melted plug. Both point to an overload, short circuit or connection problem that needs to be fixed before towing again. Replacing the fuse without finding the cause can turn a small electrical repair into damage to the vehicle wiring or trailer harness.
Build the wiring around how you use your ute
The right question is not simply, “What plug fits my trailer?” It is, “What will this ute tow over the next few years?” If you are fitting a towbar for occasional runs to the tip, a quality seven-pin flat setup may be all you need. If the ute will tow a braked work trailer, boat, caravan or off-road camper, plan for the complete package from the start.
That can include a brake controller, twelve-pin connection, Anderson plug, heavy-duty cable, battery charging support and a neatly integrated socket mount. Adding these pieces at the time of fitment is usually cleaner than rebuilding the system after the first big trip.
At Tiger-X Auto, towbar wiring can be matched to the vehicle, towbar and trailer application as part of a practical ute build. The aim is simple: a tough, tidy connection that works when the trailer is loaded, the weather turns rough and there is work to get done.
Before your next tow, plug in the trailer and test every function with someone standing behind it: park lights, brake lights, left and right indicators, reverse lights and electric brake response where fitted. Five minutes in the driveway is a far better place to find a wiring issue than the highway shoulder.
