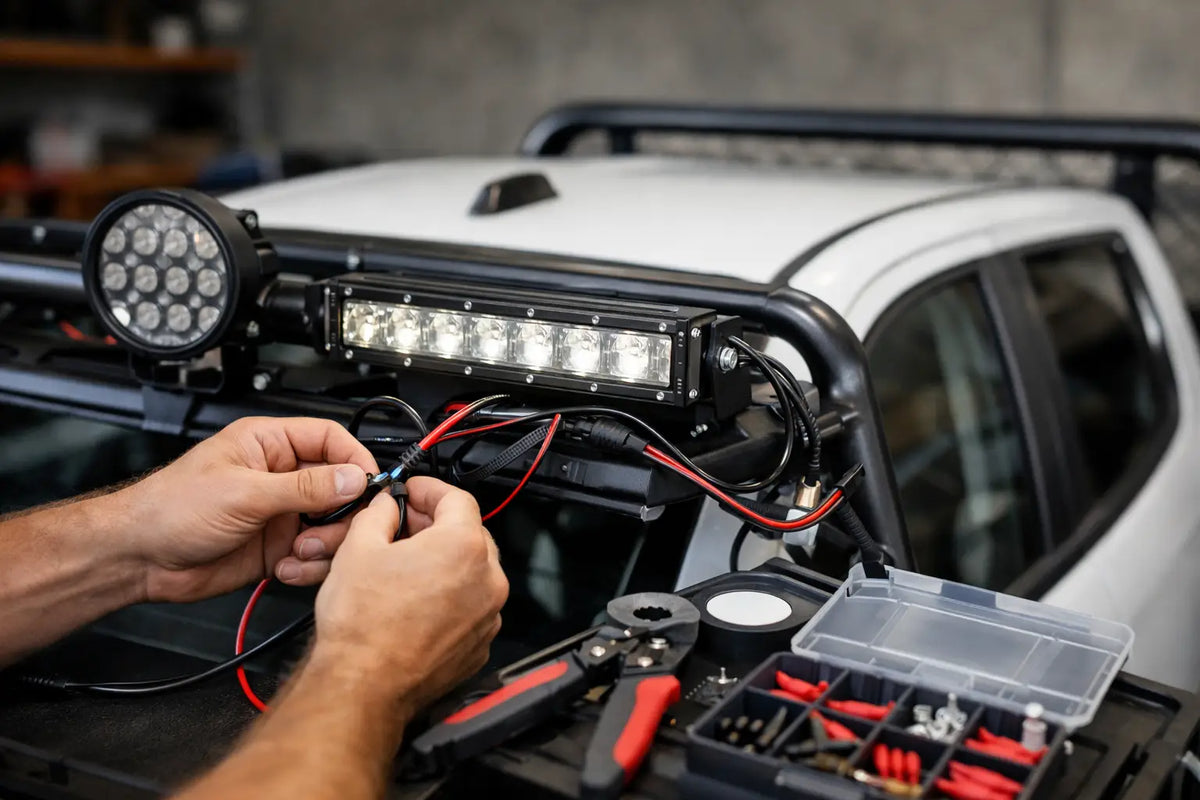

A quality light bar or set of driving lights is only as good as the wiring behind it. Poor LED light wiring can leave you with flickering lights, flat batteries, water-damaged connections or a loom that fails halfway through a remote track. Get the circuit right from the start and your auxiliary lighting will be reliable when the workday runs late or the road home turns rough.
For utes that earn their keep, wiring needs to handle heat, vibration, water crossings, corrugations and regular bonnet-up servicing. That means choosing the right components, routing the loom properly and protecting every part of the circuit - not simply joining wires until the lights turn on.
Start with the lighting job
Before choosing cable or mounting a switch, work out what the lights are meant to do. A forward-facing light bar, driving lights, work lights and reverse lights each have different switching and legal considerations. They may also draw very different amounts of current.
Driving lights and light bars are generally wired to operate with high beam, so they cannot be used independently on public roads. Work lights are useful around a toolbox, tray or canopy, but should be controlled so they do not create glare for other road users. Reverse lights need careful placement and switching, particularly if they are intended for use beyond simply assisting when reversing.
The vehicle matters too. Late-model Rangers, Hiluxes, D-MAXs, Tritons and Navaras can use sensitive multiplexed electrical systems. Tapping into the wrong factory wire can trigger warning lights, interfere with vehicle functions or create an unreliable high-beam signal. Vehicle-specific harnesses and suitable signal interfaces take much of the guesswork out of the job.
The LED light wiring circuit explained
A sound auxiliary lighting circuit follows a simple path: battery power passes through a fuse, then a relay or electronic controller, before reaching the lights. A switched signal tells the relay when to supply that power. The lights are then earthed through an appropriately sized, clean connection.
This arrangement keeps the high-current load out of the factory switching circuit. Your dashboard switch and high-beam trigger activate the relay, while the heavier cable carries power directly from the battery to the lights. It is a safer, cleaner method than trying to run the full lighting load through a small switch or an existing vehicle wire.
Fuse placement is not optional
The main fuse protects the cable from the battery onwards. It should sit as close to the battery positive terminal as practical. If a cable rubs through on a bullbar bracket, behind the grille or near the radiator support, the fuse is what stops that damaged cable from becoming a serious heat risk.
Fuse size should match the cable capacity and expected load, not simply be the largest fuse available. LED lights draw less current than old halogen setups, but a multi-light system can still place meaningful load on a circuit. Check the manufacturer’s stated current draw and allow for the cable run, then select correctly rated cable, fuse holder and fuse.
Relays and smart harnesses have different roles
A conventional automotive relay is proven, serviceable and well suited to many auxiliary lighting installations. A quality relay harness is often the practical answer for a pair of driving lights or a modest light bar.
Electronic switching systems and smart controllers can be a better fit for a heavily accessorised ute. They reduce the number of separate relays and fuse holders around the battery, allow labelled in-cabin switch panels and make future additions easier. The trade-off is higher upfront cost and the need for careful configuration. For a simple two-light setup, a conventional harness may be all you need. For a canopy build with lighting, fridge power, air compressor and several accessories, a planned control system can keep the install tidy and expandable.
Cable size, earths and voltage drop
Cable that is too small creates voltage drop. The lights may still work, but they can produce less output than intended and the cable may run hotter than it should. Long runs to roof racks, tray-mounted work lights and rear canopy lights need particular attention because every extra metre adds resistance.
Use automotive-grade cable sized for the circuit’s current draw and total route length. Quality cable insulation is worth the spend under a ute bonnet, where heat, oils and abrasion are part of normal life. Avoid household cable, thin speaker wire and unknown offcuts for permanent vehicle circuits.
Earth quality is just as important as the positive feed. A poor earth can cause dim lights, intermittent operation and faults that are frustrating to trace. Where practical, run a dedicated earth back to the battery negative terminal or a known, properly prepared chassis earth point. If using the chassis, remove paint at the contact point, use a secure fastener and protect the completed connection against corrosion.
Route the loom like it has to survive the bush
A neat loom is not only about appearance. It makes future servicing easier and prevents common failures caused by rubbing, heat and water entry. Keep wiring clear of exhaust components, turbo heat, sharp body edges, steering shafts, fan shrouds and moving suspension parts.
Run cables in split conduit or protective sleeving where exposure is likely. Secure the loom at sensible intervals with quality mounts and ties, leaving enough movement where the engine or body flexes. Do not stretch a cable tight across a gap or let it hang against metal edges. A grommet is essential anywhere wiring passes through a firewall, panel or canopy wall.
At the front of the ute, allow enough slack for grille removal, bullbar servicing and light adjustment. At the rear, consider how the tailgate, canopy door or drawer system operates. Wiring that looks fine with the vehicle parked can become pinched the first time a tailgate is dropped or a roller cover is opened.
Protect every connection
Crimp terminals should be correctly sized for the cable and installed with the proper crimping tool. A loose crimp creates resistance and heat. Twisting wires together and covering them with tape may work temporarily, but it is not a durable solution for a work ute or 4x4.
Use sealed connectors in exposed areas, heat-shrink terminals where suitable and dielectric grease where recommended by the connector manufacturer. Keep joins accessible where possible. Hiding several unlabelled connections behind a bumper makes fault-finding painful later.
Switching lights legally and practically
A dash switch gives you control, but it should be positioned where it is easy to reach without distracting you from driving. For driving lights, the common setup uses a dash switch as an enable function, with the actual trigger taken from the high-beam circuit. This means the auxiliary lights work only when high beam is selected and the dash switch is on.
Modern vehicles may require a dedicated high-beam adaptor or interface rather than a direct wire tap. This is especially relevant on CAN-bus and LED-headlight-equipped vehicles. Using the correct interface protects the factory system and produces a dependable signal for the relay or controller.
Australian road rules and lighting requirements vary by state and territory, and they can change. Check the applicable requirements before fitting or using auxiliary lights, especially roof-mounted lights, rear work lights and high-output forward lighting. A professional fitter can help ensure the installation, aiming and switching arrangement suit both the vehicle and its intended use.
Plan for the accessories you will add later
Most ute owners do not stop at one light bar. A basic lighting job can grow into canopy work lights, drawer lighting, camp lights, beacon wiring, a dual-battery system or an air compressor. Planning spare circuit capacity now can prevent a second full wiring job later.
This does not mean oversizing everything blindly. It means leaving room for expansion, labelling circuits and choosing a sensible location for relays, fuse blocks or a controller. A well-planned setup also makes it easier to isolate faults. When a rear work light stops operating, you should be able to identify its fuse, relay and earth point without pulling half the ute apart.
For custom builds, consider the entire vehicle as one system. Bullbar lights, roof rack lights, canopy power and rear accessories should work together without cluttering the battery area or overloading existing circuits. Tiger-X Auto can pair premium lighting with expert installation for a setup that suits how your ute is actually used.
When professional fitment is the smart call
A plug-and-play harness can suit a straightforward install if you understand 12V systems and have the right tools. Once the job involves factory high-beam interfaces, multiple lighting zones, canopy penetrations, dual batteries or a late-model electrical system, professional fitment is often the better value.
Licensed installers can route and protect the loom properly, select compatible components and test the completed system under load. That matters when your ute has to start every morning, carry tools all week and head off-road on the weekend.
Good LED light wiring should disappear into the vehicle: protected, labelled, properly fused and ready when you need it. The lights get the attention at night, but the workmanship behind them is what keeps them working long after the first fitment.
