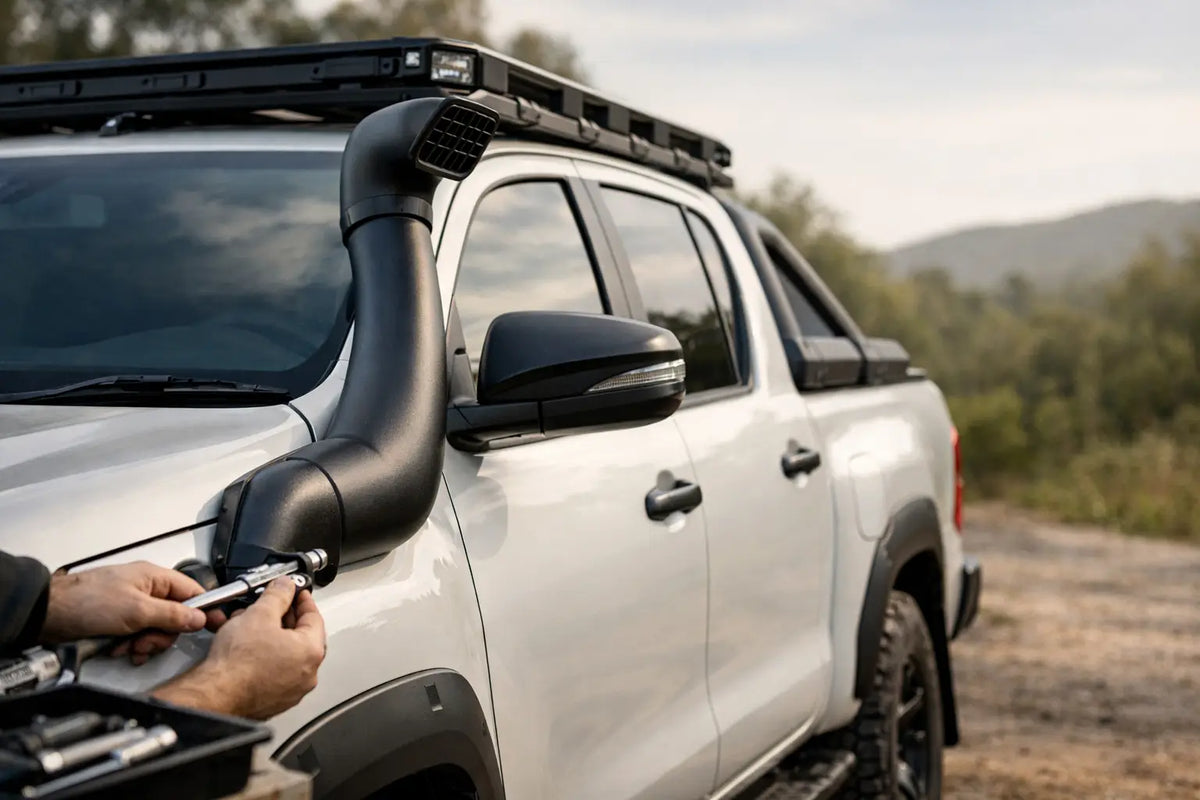

A snorkel is not just a cosmetic upgrade for a Toyota Hilux. When it is correctly fitted, it raises the air intake away from wheel spray, bulldust and the hot, dirty air that builds around the engine bay. This Hilux snorkel installation guide explains what is involved, where fitment can go wrong, and why accurate sealing matters just as much as the snorkel itself.
For a ute that works through dust, rain, corrugations and weekend tracks, a properly installed snorkel is a practical piece of protection. It can help the engine draw cleaner air in harsh conditions, but it does not make the vehicle waterproof or remove the need for sensible driving through water.
Start with the right snorkel for your Hilux
Toyota Hilux snorkels are vehicle-specific for a reason. Guard shape, A-pillar profile, airbox location and mounting points can differ between generations and variants. A snorkel designed for an N70 Hilux will not necessarily fit an N80 or later model correctly, even if it looks close in product photos.
Before any holes are drilled, confirm the exact year, body style, engine and variant of the ute. Check whether the kit suits your factory airbox, or whether it requires an adaptor for an aftermarket intake setup. If the Hilux runs auxiliary lighting, a bonnet protector, flares or accessories mounted near the A-pillar, make sure there is enough clearance for the snorkel body and mounting bracket.
Material also matters. A quality polyethylene snorkel is a common choice for Australian conditions because it handles UV exposure, vibration and the occasional knock from scrub. The finish should sit neatly against the guard and pillar, with mounts that support the snorkel without stressing the bodywork.
Tools and preparation for Hilux snorkel installation
A professional installation begins with preparation, not drilling. The guard needs to be clean, the bonnet must open freely, and the supplied template needs to match the actual snorkel and vehicle. Never rely on measurements from another Hilux or a template downloaded from an unknown source.
For the job, fitters generally need a drill, step drill or hole saw, masking tape, centre punch, deburring tool, rust-prevention treatment, quality automotive sealant, sockets, trim tools and protective gear. A vacuum is useful too. Metal shavings left in the guard or engine bay are an avoidable problem.
Disconnecting the battery is sensible where work is being carried out around electrical accessories or wiring. Open the bonnet, remove the relevant intake ducting and inspect the airbox before beginning. This is the point to find cracked airbox clips, worn intake hoses or a poorly seated filter. A new snorkel cannot compensate for leaks already present downstream of the intake head.
Position the template carefully
Masking tape protects the paint and gives the template a stable surface. Align it to the guard contours and reference points specified by the manufacturer, then check it again with the snorkel held in place. The snorkel should follow the guard naturally and sit square against the A-pillar without forcing it into position.
Mark every mounting hole and the main intake opening. Use a centre punch lightly so the drill does not wander across the panel. This is where rushed DIY jobs often go wrong: a few millimetres out can leave mounting bolts under load, create uneven gaps, or make the snorkel sit crooked against the windscreen pillar.
Cut, deburr and protect the guard
Drill pilot holes first, then enlarge them to the required diameter. The large intake opening should be cut steadily with the correct hole saw or cutting tool. Avoid excessive speed and pressure, which can tear paint around the cut edge or distort thin panel steel.
Once the holes are cut, remove all burrs inside and outside the guard. Bare metal must be treated with a suitable rust-prevention coating before the snorkel is fitted. This detail is easy to overlook, but it matters on a work ute exposed to rain, mud and road grime. A clean, protected edge is part of a durable installation.
Test-fit the snorkel body before applying sealant. Check that the studs pass through cleanly, the intake outlet lines up with the factory airbox connection, and the bonnet has full clearance when shut. Do not tighten the hardware until the snorkel is correctly positioned.
Seal the intake path, not just the snorkel body
The snorkel’s job is only as good as the full air path between the intake head and engine. The most critical part of the install is sealing the snorkel outlet to the airbox or intake duct. Every joint needs to be clean, correctly seated and clamped firmly without crushing plastic components.
Use the sealant recommended by the snorkel manufacturer around the required joints and mounting areas. More sealant is not always better. Excess material can look untidy, make future servicing harder and, if applied carelessly, end up where it should not be. The aim is a continuous, controlled seal that prevents unfiltered air entering the system.
Inspect the airbox lid seal and filter seating at the same time. A loose airbox lid, damaged rubber seal or split intake hose can allow dust in after the snorkel has done its job. On a Hilux used around worksites, dry paddocks or outback tracks, fine dust can find the smallest gap.
The A-pillar bracket also deserves attention. It should be mounted with the supplied fasteners and any required inserts or rivnuts, sitting secure but not over-tightened. A snorkel that moves against the pillar will eventually wear its mounting points or create noise on corrugated roads.
Check the installation before heading bush
After the sealant has cured as required, carry out a proper inspection. Start the engine and listen for unusual induction noise, whistling or a rough idle that may point to an air leak. Check that no hoses are kinked and that the airbox is fully closed.
A workshop can perform a controlled intake leak test to verify the system is sealed. This is the sensible option if the Hilux is regularly used in deep water, heavy dust or remote areas where a preventable issue becomes a recovery job. It is also worth checking that the snorkel head is facing the intended direction and is firmly secured.
Then inspect the fitment from outside the ute. The snorkel should sit flush and straight, with consistent gaps around the guard and pillar. Open and close the bonnet several times. Look for contact with the bonnet edge, windscreen trim, flares or accessories. A clean install should look integrated, but more importantly, it should stay secure through vibration and rough use.
What a snorkel can and cannot do
A raised intake helps reduce the amount of dust and water spray drawn toward the air intake. It can be valuable for convoy travel on dry tracks, station work, beach runs and controlled creek crossings. It may also change intake sound slightly, which many owners notice under throttle.
It does not increase the Hilux’s safe water depth on its own. Water can still enter through breathers, electrical components, door seals and other vehicle systems. Crossing depth depends on current, surface conditions, vehicle setup and driver judgement. Slow, steady driving and a proper post-crossing check remain essential.
A snorkel is also not a substitute for air-filter maintenance. Check the filter more often when travelling in bulldust or working around unsealed sites. If the filter is heavily loaded, replace it rather than relying on a quick shake-out that may leave fine material behind.
When professional fitment is the better call
A capable owner with the correct kit, tools and patience can install a snorkel, but the job involves permanent bodywork, airbox sealing and precise alignment. If the ute is financed, under warranty, used for work every day or fitted with other aftermarket gear, professional installation removes a lot of uncertainty.
Tiger-X Auto can supply vehicle-specific snorkels and fit them with workshop-backed attention to the details that count: accurate guard cutting, corrosion protection, clean sealing and secure mounting. That approach suits Hilux owners who need their ute ready for site work on Monday and tracks on the weekend.
Treat the snorkel as part of the whole intake system, not a bolt-on ornament. When the fitment is accurate and the air path is sealed properly, it is a tough, worthwhile upgrade that earns its place every time the conditions turn dusty, wet or rough.
